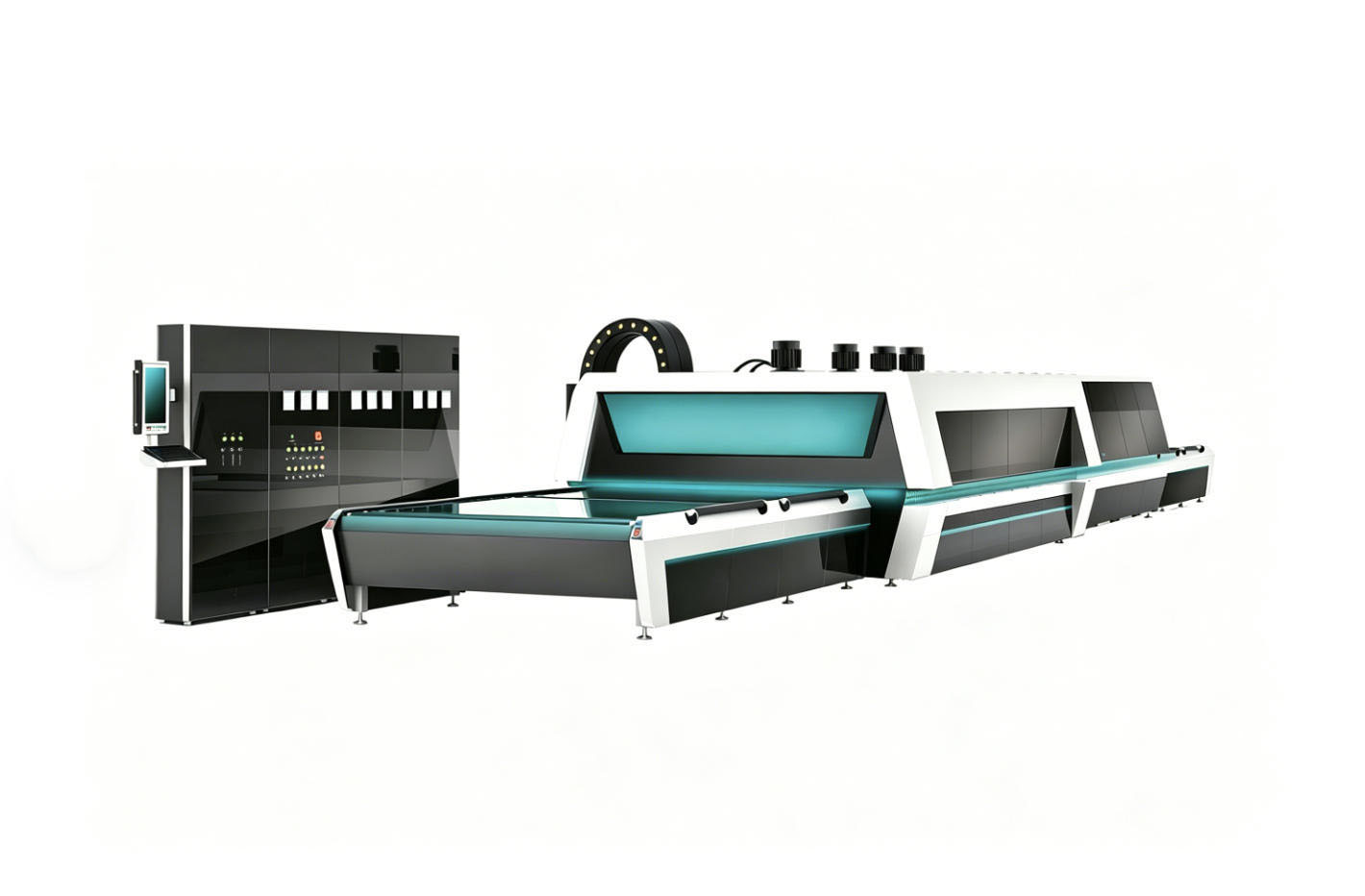

Flat Glass Forced Convection Tempering Furnace
Features and functions:
1.Automatic heating system
2.Output statistics
3.Quenching blower not start alarm function
4.Compressed air shortage alarm function
5.Without glass inside heating section, within 3 minutes, no glass enters heating section, the blower stops automatically
6.Frequency tracking of the quenching blower inverter
7.Random oscillation inside heating section
8.Optical sensor in the exit of furnace, double check glass get out of furnace or not
9.Heating delay function
Technical parameter:
| Item | Specification |
| Structure of equipment | Loading table, forced convection system, heating section, flat quenching section, unloading table, control system, air ducts etc. |
| L×W×H | 18000×3500×3000mm |
| L×W | 28000×7000mm
Including the operating space, excluding the quenching blower area |
| Glass thickness ranges | 4-19mm |
| Max loading area | 2440×3660mm (5-19mm)2440×1500mm (4mm) |
| Min glass size | 200×450mm |
| Suitable glass types | • clear float glass
• online-coated glass • pattern glass, color glass • E≥0.05/offline-coated, low-e glass E≥0.05 |
| requested float glass quality | No visible bubbles, impurities; standard high quality float glass; glass shall be well beveling, edging, washing and dry. |
