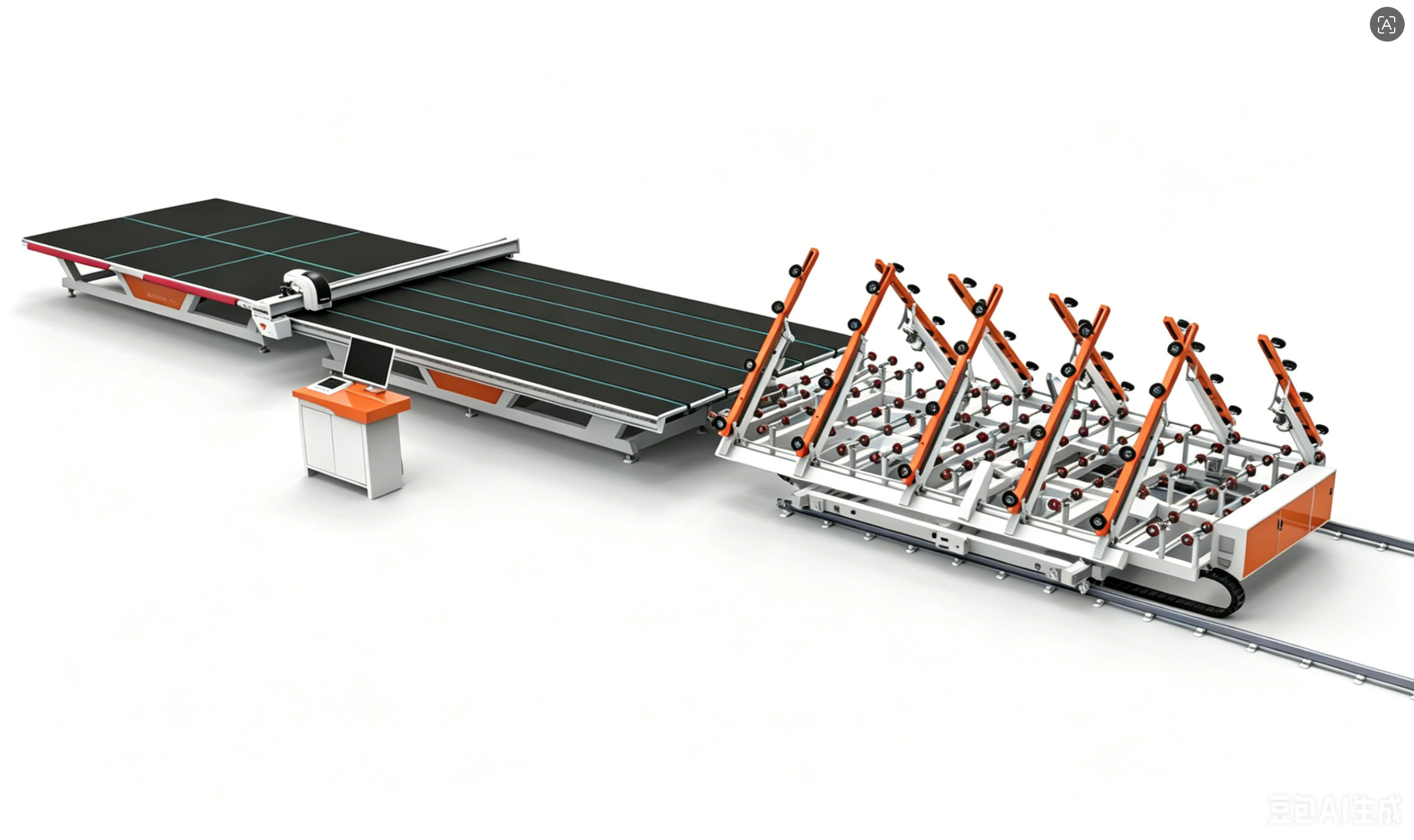

Automatic Glass Loading, Cutting and Breaking Line
Features and functions:
1.The intelligent glass cutting assembly line consists of three major systems: the loading table, cutting table, and breaking table.
2.The glass cutting process is automated and can quickly and accurately perform picking, cutting, and air floating table breaking.
3.Optional functions include automatic labeling, Low-e film removal, laser marking, etc.
4.Suitable for straight and irregular cutting of flat glass in construction, decoration, home appliances, mirror splicing, handicrafts, and other fields.
5.Fully automatic cutting machine adopts industry-leading servo direct drive structure, combined with high-quality linear guide rail, stable and reliable performance, and long service life.
6.High cutting accuracy and good edge breaking effect can greatly save the consumption of grinding wheels in the edge grinding process and reduce production costs.
7.The device has a one click reset function, which can complete all the preparation work before automatic startup with just one touch of the touch screen, greatly improving work efficiency.
Technical parameter:
| Item | Specification |
| Maximum cutting size | 3800mm × 2600mm |
| Glass thickness | 3-19mm |
| Accuracy of linear cutting | ±0.20mm/m |
| Cutting speed of glass | 0-200 m/min |
| Glass conveying speed | 0-26 m/min |
| Cutting bridge speed | 0-200 m/min |
| Straight line acceleration | 3400 mm/s² |
| Compressed air | 0.55~0.7 MPa |
| Installed power | Approx. 6.5 kW |
| Mesa Height | 900±30 mm |
| External dimensions | 4850mm × 3800mm (including beam) |
| Equipment weight | 2150 kg |
