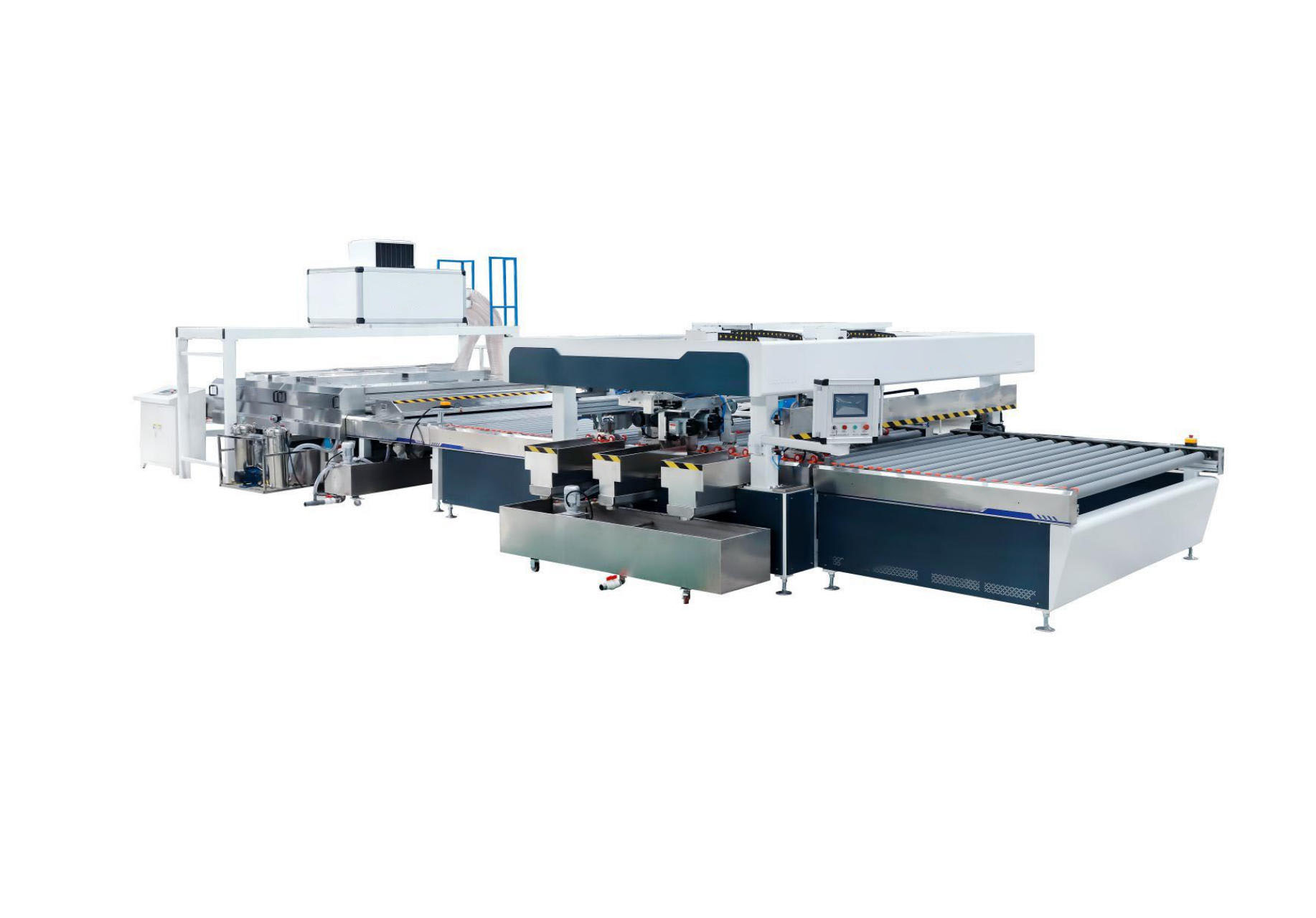

Automatic Four-side Glass Edging, Washing and Drying Line
Features and functions:
1. The machine integrates loading, grinding, transmission, unloading, water, electrical and safety systems for fully coordinated operation.
2. Equipped with servo motion controller and bus communication, it delivers stable operation, fast calculation and strong anti-interference capability.
3. Each grinding head is fitted with four durable and cost-effective grinding wheels for glass chamfering.
4. The feeding unit adopts aluminum profile frame, conveyor rollers, positioning wheels and servo drive system.
5. The main frame is welded, annealed and precision-machined for high stability. It adopts stainless steel water tray, high-precision aluminum grinding heads and imported electrical parts.
6. The discharging unit features aluminum frame, servo conveying system and stainless steel water tray.
7. The conveying system adopts leaning wheel and pressure wheel positioning structure.
8. It realizes automatic glass size detection and tool-free edging, efficient and convenient.
9. The system supports self-diagnosis, alarm and automatic rail lubrication.
10. Servo motors and high-precision helical gears ensure stable and accurate movement.
11. Screw stepping motor feeding ensures more stable chamfering than pneumatic structures.
12. Synchronous belt-driven rubber rollers improve conveying accuracy.
Technical parameter:
| Item | Specification |
| Application Scope | Coarse grinding, upper/lower chamfering, film removal and one-pass bottom finishing for rectangular float glass |
| Grinding Head Configuration | 4 grinding heads. Grinding wheel configuration per head: 2 upper/lower chamfering diamond wheels each, 1 film removal wheel, 1 bottom resin wheel |
| Processing Range (Length Optional) | Min 160×360 mm ~ Max 2440×3600 mm |
| Processable Thickness | 3.0-12mm |
| Glass Tolerance Before Processing | Glass length and width tolerance ±2mm (glass error is not corrected; excessive tolerance will affect edging quality and consistency) |
| Chamfer Size | 0.5-2mm (based on 45° bevel) |
| Edging Quality | Uniform upper/lower chamfering, chipping size ≤0.5mm |
| Glass Yield Rate | ≥99.7% |
| Grinding Speed | Chamfering: 12-30m/minChamfering + Bottom: 12-20m/minChamfering + Film Removal: 12-30m/min |
| Processing Efficiency | 4-5 pieces/min (calculated with 5mm thick × 1000×1000mm glass without obvious defects) |
| Air Supply | 0.6MPa ~ 0.8MPa, Φ10 |
| Water Consumption | Replace circulating water and replenish water each shift, 0.8 cubic meters |
| Working Surface Height | 900±50mm |
| Edger Power | 20kW, three-phase four-wire, 380V/50Hz |
Glass Washing & Drying Machine
Features and functions:
1. This machine integrates complete functional systems for synchronized and stable operation.
2. Adopting servo controller and bus communication, it features stable operation and strong anti-interference performance.
3. Each grinding head is equipped with four durable and cost-effective wheels for glass chamfering.
4. The feeding unit consists of aluminum frame, conveyor rollers, positioning wheels and servo drive system.
5. The precision-welded and annealed main frame ensures high stability, with stainless steel water tray, aluminum grinding heads and imported electric parts.
6. The discharging unit adopts aluminum frame, servo conveying system and stainless steel water tray.
7. The conveying system applies leaning wheel and pressure wheel positioning structure.
8. Automatic glass size detection realizes tool-free edging for high efficiency.
9. Built-in self-diagnosis and alarm system, with automatic rail lubrication function.
10. Servo motors and high-precision helical gears ensure stable and accurate operation.
11. Screw stepping motor feeding provides more stable chamfering than pneumatic structure.
12. Synchronous belt-driven rubber rollers greatly improve conveying accuracy.
Technical parameter:
| Item | Specification | |
| Maximum glass washing width | 2500mm | |
| Minimum glass washing size | 100*350mm | |
| Glass thickness | 2 25mm | |
| Washing speed range | 1 18m/min | |
| Main drive speed adjustment method | Variable frequency speed regulation | |
| Table height | 900±60 | |
| Total power | 50KW | |
| Power supply | 380V 50Hz | |
| Water source: Deionized water refill | Provided by the buyer | |
| Air heating power (optional) | 9KW | |
| Water heating power (optional) | 6KW | |
