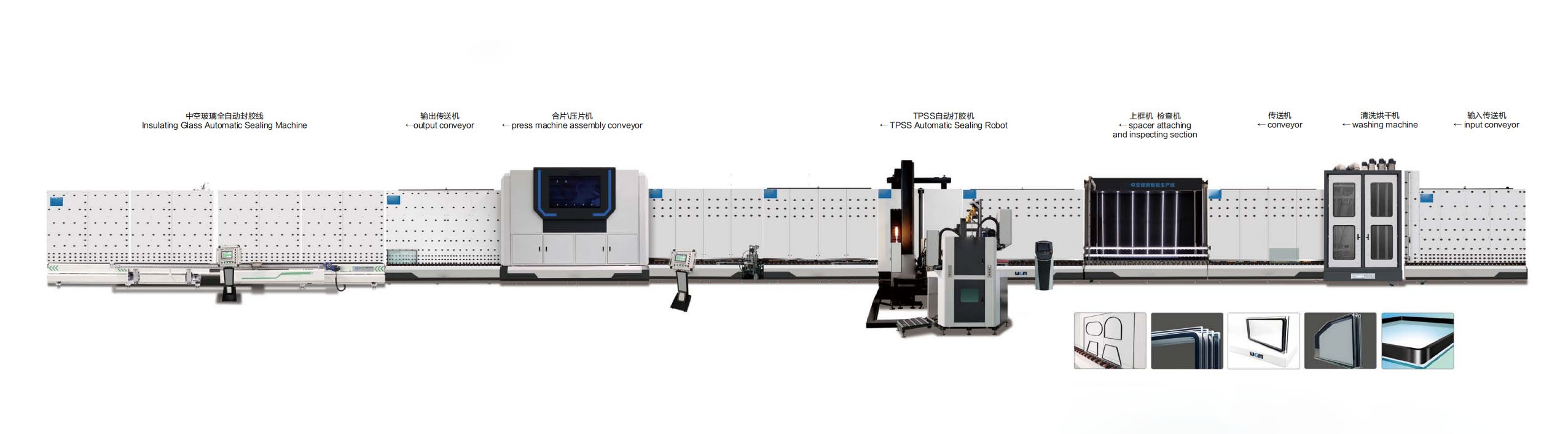

Insulating Glass Automatic Production Line with Sealing
Features and functions:
1.No pre-processing procedures required, such as bending spacers, applying butyl glue, and assembling aluminum spacer frames.
2.The board surface uses high-density composite plate, and the side is equipped with waterproof structure, strong and durable.
3.The wear-resistant transmission wheel is equipped with a spring device to reduce friction with the glass, durable, and prevent glass damage when put on the glass.
4. Use of frequency conversion transmission motor, stable and efficient.
Technical parameter:
| Item | Specification |
| Glass thickness | 3-12 mm; 3-40 mm (optional) |
| Insulating glass thickness | 15-60 mm |
| Sealing speed | 5-30 m/min |
| Sealing width | 6-24 mm |
| Sealing depth | 2-15 mm |
| Air supply | 0.5-0.8 MPa |
| Working height | 520-580 mm |
| Min. Glass Size | 300 × 400 mm |
Insulating Glass Automatic Sealing Line
Features and functions:
1.Achieve various size of rectangular insulating glass automatic continuously sealing, high efficiency & stable quality sealing performance.
2.Finished IG unit can be stored on the first and third section, strengthen the continuity of machine’s operation, and improve the production efficiency.
3.Friendly interface, easy for operation.
4.The sealing of all edges and corners enriches no air bubbles, fully coating, without manual trimming.
5.Adopt World-renowned servo control system, stable performance.
6.Accurate synchronous belt transmission system to ensure glass convey stable and clean.
7.The automatic alarm device with unique sufficient sealant.
Technical parameter:
| Item | Specification |
| Min. glass size | 300 × 300mm |
| Max. glass size | 2000 × 3500mm / 2500 × 4000mm |
| Glass thickness | 3~12mm |
| Insulating glass thickness | 15~60mm |
| Sealing speed | 5~30m/min |
| Sealing width | 6~30mm |
| Sealing depth | 2~15mm |
| Conveyor speed | 0~48 m/min |
| Power | 13KW |
| Air supply | 0.5~0.8MPa |
| Working height | 520~580mm |
